13kv 15kv 69kv Philippines Octagonal Galvanized Metal Steel Pole

Certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
China Jiangsu Baojuhe Science and Technology Co.,Ltd certification
I'm Online Chat Now

13kv 15kv 69kv Philippines Octagonal Galvanized Metal Steel Pole

13kv 15kv 69kv Philippines Octagonal Galvanized Metal Steel Pole
13kv 15kv 69kv Philippines Octagonal Galvanized Metal Steel Pole 13kv 15kv 69kv Philippines Octagonal Galvanized Metal Steel Pole 13kv 15kv 69kv Philippines Octagonal Galvanized Metal Steel Pole 13kv 15kv 69kv Philippines Octagonal Galvanized Metal Steel Pole 13kv 15kv 69kv Philippines Octagonal Galvanized Metal Steel Pole

Large Image :  13kv 15kv 69kv Philippines Octagonal Galvanized Metal Steel Pole

Product Details:
Place of Origin: China
Brand Name: BOSHENG
Certification: ISO9001:2008
Model Number: BS-35
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Pack the poles with sack or straw or wood or steel strap, etc
Delivery Time: 15 - 25 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 2000 Ton per month
Detailed Product Description
Material: Steel Q345 Shape: Octagonal
Tolerance: +-2% Min Yield Stress: 345Mpa
Tensile Strength: 470 Mpa ~ 630 Mpa Finishing: Hot Dip Galvanized Over 86mm
Galvanized: ASTM A123 Welding: AWS D1.1
Length: 25FT 30FT 35FT 40FT 45FT
High Light:

octagonal galvanized metal pole

,

13kv galvanized metal pole

,

15kv galvanized metal pole

Philippines Nea Standard​ 13kv 15kv 69kv Octagonal Galvanized Electric Steel Poles

Specifications:

Jiangsu Baojuhe Science and Technology Co.,Ltd. ( previous name Jiangsu Bosheng Steel Poles Co., Ltd.) is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.

Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.

Through Shanghai Port, which is one of the largest ports in China, we export poles to South America, Middle East, Africa, Australia, Philippines and other countries.




                                           Steel Pole of National Electrification Administration
                                                                         (PHILIPPINES)

                         Specification for Distribution Steel Pole 25FT, 30FT, 35FT, 40FT,45FT.


Height

(ft)

Thickness

(mm)

Butt Diameter

(mm)

Top Diameter

(mm)

Design Load

(kg)

Yield Stress

(MPA)

Zinc Coating

(microns)

25 2.5 152 120 300 345 86
30 3.0 226 127 500 345 86
35 3.0 248 127 500 345 86
40 3.0 317 127 500 345 86
45 4.0 328 127 750 345 86


13kv 15kv 69kv Philippines Octagonal Galvanized Metal Steel Pole 0

Description

JSBS has passed the ISO 9001 quality management system. And we have our own Lab to do the chemical and mechanical test. For example, we test the raw material component content and the strength when we purchase the raw material. And if the material does not pass the test,we’ll not use it to produce our poles. So customers can be rest assured that we always manufacture the good quality poles. Meanwhile, our factory has the AMT ( Advanced Manufacturing Technology ), all the purposes are to provide high-quality good poles all over the world.
 13kv 15kv 69kv Philippines Octagonal Galvanized Metal Steel Pole 1
 Our factory has built special plant for testing the load of steel poles.

Production Process


  • Raw material test
  • Cutting
  • Bending
  • Welding (longitudinal )
  • Dimension verify
  • Flange welding

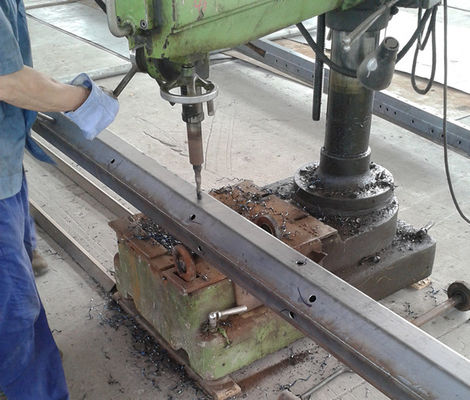

  • Hole drilling
  • Calibration
  • Deburr
  • Galvanization or powder coating or Bituminous painting
  • Recalibration
  • Packages
  • Delivery

13kv 15kv 69kv Philippines Octagonal Galvanized Metal Steel Pole 2


Service


Best Service: -- Jiangsu Baojuhe Science and Technology Co., Ltd, which always been providing
our clients with great quality products and superior Customer service.

Quick Lead Time.--We inform the client the exact delivery time when they place the order and work Hard to
ensure that all of your deadlines are met.

Unbeatable Prices-- Raw Material Cost + Hot Dip Galvanization Cost + Manufacturing Cost
Unbeatable Quality -- We always supply steel poles with good quality to all of our customers.
Brand Awareness -- We achieve a good reputation among our clients and develop long term business.
Special Offers. -- We quote first and then you compare, finally choose us!
Special support.-- we have a policy term to support our customers for products also payment.





Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.

Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.

2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as a deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery Time: 30 working days after PI/drawing/ prepayment confirmed.
5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom, or according to clients’ requirement.



Company Introduce:
Through the efforts of the company staff, the support and cooperation from all over the world. Our company's products have been exported to the Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World per day on average.
13kv 15kv 69kv Philippines Octagonal Galvanized Metal Steel Pole 3
